Mechanical Lug, 300 kcmil Max, 1 Conductor, 1 Hole, 5/16 in Stud, Aluminum MPN:KA30U
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4686324
Mechanical Lug, 300 kcmil Max, 1 Conductor, 1 Hole, 5/16 in Stud, Aluminum

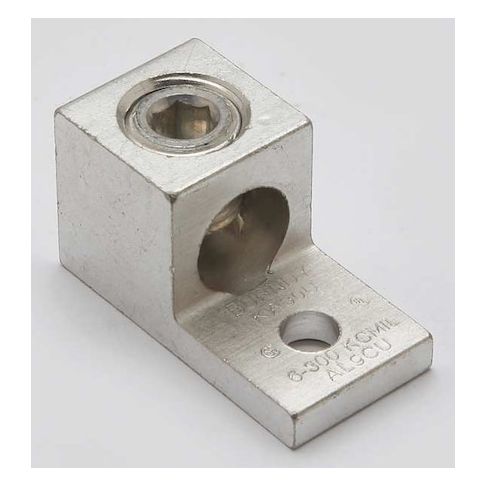

The Burndy Mechanical Lug is a reliable and efficient connector for aluminum and copper conductors. Designed for stranded copper wire sizes from 6 AWG to 300 kcmil, this lug provides a secure connection for a variety of electrical applications. Its aluminum body and hex socket head make it easy to install and use. With a maximum operating temperature of 194°F and a maximum voltage of 600V, this lug is suitable for a range of uses, including residential and commercial electrical installations, as well as industrial and construction projects. Its compact size and lightweight design make it easy to handle and store.
Top product features:
- Mechanical lug design allows for secure connection and disconnection of conductors.
- Aluminum body provides corrosion resistance and durability.
- Stranded copper wire can be connected with a minimum size of 6 AWG and a maximum size of 300 kcmil.
Top product applications:
- Connecting stranded copper wire to a 5/16 in stud in a high-temperature application up to 194°F
- Joining aluminum conductors in a low-voltage electrical system up to 600V
- Connecting stranded copper wire from 6 AWG to 300 kcmil to a stud in a general industrial electrical installation
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 300 kcmil, For Stud Size 5/16 in, Head Style Hex Socket, Number of Holes 1, Hole Diameter 0.33 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.94 in, Tongue Width 1.02 in, Tongue Thickness 0.25 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.00
- Package Height: 1.10
- Package Weight: 0.10
Product info last updated on March 5, 2026 10:39pm UTC
Category: Electrical Connectors
