Mechanical Lug, 4 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Copper MPN:KPA4CUNPL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4685414

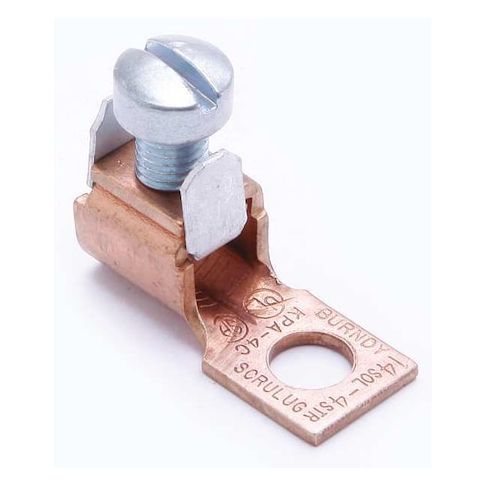

Mechanical Lug, 4 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector for stranded copper wire applications. Designed for use with copper conductors, it securely terminates single conductors up to 4 AWG, making it ideal for a variety of electrical connections. Its compact hex head design and 1/4 in stud provide a secure fit, while its copper body ensures optimal conductivity. This connector is perfect for use in industrial, commercial, and residential electrical applications, including circuit breakers, panel boards, and other electrical systems. Its durability and ease of use make it a valuable addition to any electrical project.
Top product features:
- Connects stranded copper wire from 14 AWG to 4 AWG
- Accepts a 1/4 in stud for secure attachment
- Designed for use in applications with a maximum operating temperature of 194 Degrees F and a maximum voltage of 600 V
Top product applications:
- Wire harness assembly
- Automotive electrical system repair
- Heavy duty electrical wiring installations
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, For Stud Size 1/4 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.27 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.59 in, Tongue Width 0.5 in, Tongue Thickness 0.06 in, Connector Type Terminal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 1.00
- Package Height: 0.50
- Package Weight: 0.01
Product info last updated on February 19, 2026 9:51am UTC
Category: Electrical Connectors
