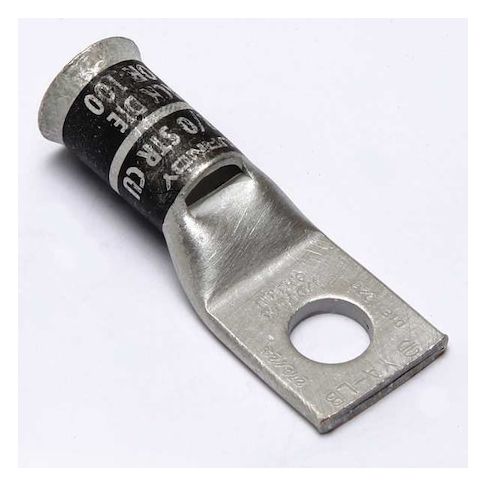

One-Hole Compression Lug, 1/0 AWG, 2/0 AWG Max, 3/8 in Stud, Short Barrel, Copper, Black MPN:YA26LB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4685301
One-Hole Compression Lug, 1/0 AWG, 2/0 AWG Max, 3/8 in Stud, Short Barrel, Copper, Black
The Burndy One-Hole Compression Lug is a reliable and efficient solution for connecting stranded copper wires in a variety of applications. With a maximum operating temperature of 194°F and a voltage rating of 35 kV, this lug is suitable for use in harsh environments. Its compact design and short barrel make it ideal for use in tight spaces. The lug is CSA certified and UL listed, ensuring compliance with industry standards. Use it in electrical panels, switchgear, and other equipment to ensure secure and reliable connections. Its durability and performance make it a valuable addition to any electrical installation.
Top product features:
- One-Hole Compression Lug can be used with stranded copper wire up to 2/0 AWG.
- The lug has a standard barrel size.
- The lug is rated for a maximum operating temperature of 194 degrees F.
Top product applications:
- Bus construction and repair
- Electrical panel and enclosure connections
- Generator and motor connections
Compression Lug, Barrel Size Standard, Color Code Black, Die Code 1,020, For Stud Size 3/8 in, For Stranded Copper Wire Size - Maximum 2/0 AWG, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Standards CSA Certified, UL 486A-486B, UL Listed, Connector Type Belled Straight Barrel, Contact Finish Tin, For Wire Size 1/0 AWG, 2/0 AWG, For Wire Type Solid, Stranded
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 0.80
- Package Height: 0.60
- Package Weight: 0.05
Product info last updated on February 10, 2026 4:21am UTC
Category: Electrical Connectors
