Two-Hole Compression Lug, 4 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Gray MPN:YA4CL2TC38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4684827

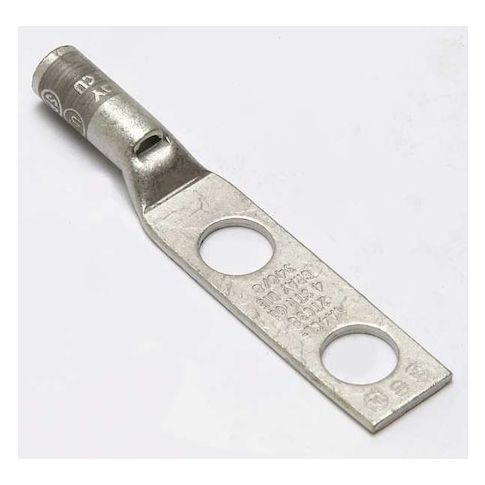

Two-Hole Compression Lug, 4 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Gray
The Burndy Two-Hole Compression Lug is a reliable and efficient termination solution for stranded copper wire up to 4 AWG. Its standard barrel design and straight tongue angle ensure a secure crimp connection, while its copper construction withstands temperatures up to 194°F and voltages up to 35 kV. CSA certified and UL listed, this lug meets rigorous industry standards. Suitable for a range of applications, including power distribution, electrical panels, and industrial control systems, the Burndy Two-Hole Compression Lug offers a durable and long-lasting connection that minimizes the risk of electrical failures and ensures safe and reliable operation.
Top product features:
- Has two inspection holes for easy wire identification and verification
- Can be used with stranded copper wire up to 4 AWG for flexibility in wire selection
- Has a crimp termination style for secure and reliable connections
Top product applications:
- Bus bar connections
- Electrical power distribution systems
- High voltage electrical connections
Compression Lug, Barrel Size Standard, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 0.70
- Package Height: 0.40
- Package Weight: 0.05
