One-Hole Compression Lug, 4 AWG Max, 1/4 in Stud, Long Barrel, Copper, Gray MPN:YA4C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4684477

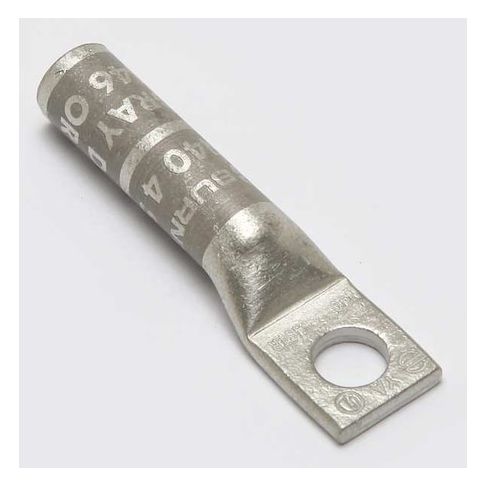

One-Hole Compression Lug, 4 AWG Max, 1/4 in Stud, Long Barrel, Copper, Gray
The Burndy One-Hole Compression Lug is a reliable and efficient solution for connecting copper conductors in high-temperature and high-voltage applications. With a maximum operating temperature of 194°F and a maximum voltage of 35kV, this lug is ideal for use in industrial and commercial settings. Its long barrel design and copper construction ensure a secure and durable connection. The lug is CSA certified and UL listed, meeting industry standards for safety and performance. Suitable for stranded copper wire sizes from 4 AWG, this lug is a versatile and reliable choice for a variety of applications, including power distribution and electrical panel connections.
Top product features:
- Compression Lug has a long barrel design
- Compression Lug is rated for maximum operating temperature of 194 Degrees F
- Compression Lug is capable of terminating stranded copper wire up to 4 AWG
Top product applications:
- Electrical Panel Installation
- Motor Control Circuit Wiring
- Power Distribution Box Connections
Compression Lug, Barrel Size Long, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.5 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 0.50
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on March 7, 2026 6:47am UTC
Category: Electrical Connectors
