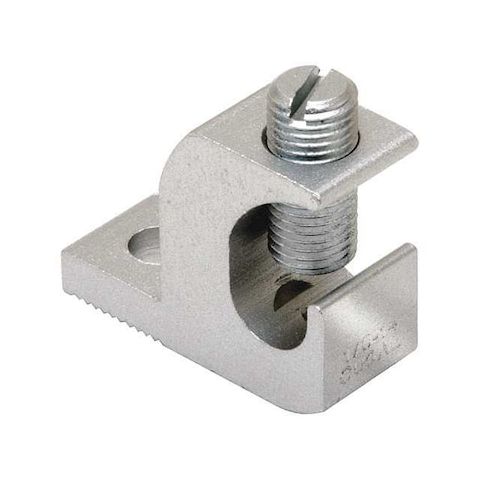

Mechanical Lug, 1 Conductor, 7/16 in Stud, Aluminum MPN:BGBL250
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4683043
Mechanical Lug, 1 Conductor, 7/16 in Stud, Aluminum
The Burndy Mechanical Lug is a reliable and efficient connector for aluminum and copper conductors. Suitable for stranded copper wire sizes from 6 AWG to 250 kcmil, it provides a secure connection for a wide range of applications. Its aluminum body and hex head design make it durable and easy to use. This lay-in lug connector is CSA certified and UL listed, ensuring compliance with industry standards. Ideal for use in electrical systems, construction, and maintenance projects, the Mechanical Lug offers a high-performance solution for connecting conductors in demanding environments, withstanding temperatures up to 194°F and voltages up to 600V.
Top product features:
- Connects stranded copper wires with a minimum size of 6 AWG and a maximum size of 250 kcmil.
- Accepts a 7/16 in stud.
- Operates at a maximum temperature of 194 Degrees F and a maximum voltage of 600 V.
Top product applications:
- Bus Bar Connections
- High-Voltage Power Distribution Systems
- Industrial Automation Systems
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, For Stud Size 7/16 in, Head Style Hex, Number of Holes 1, Hole Diameter 0.33 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Tongue Length 1.18 in, Tongue Width 0.88 in, Tongue Thickness 0.25 in, Connector Type Lay-In Lug, Standards CSA Certified, UL Listed
Additional Information
- Country of Origin: CA
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 2.30
- Package Height: 0.80
- Package Weight: 0.20
Product info last updated on March 1, 2026 11:53am UTC
Category: Electrical Connectors
