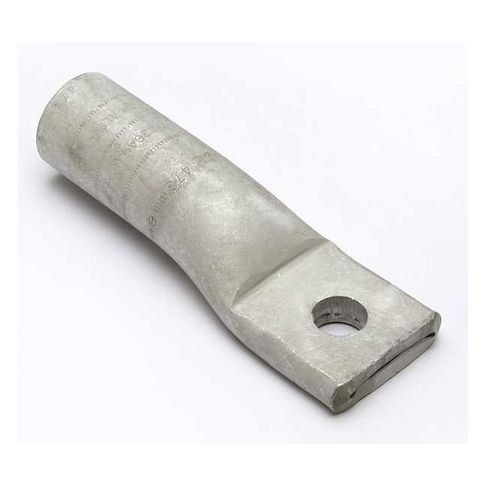

One-Hole Compression Lug, 4/0 AWG Max, 1/2 in Stud, Standard Barrel, Aluminum, White MPN:YA28A3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4682237
One-Hole Compression Lug, 4/0 AWG Max, 1/2 in Stud, Standard Barrel, Aluminum, White
The Burndy One-Hole Compression Lug is a high-quality, CSA-certified and UL-listed solution for electrical connections. Designed for use with aluminum and copper conductors, this lug features a standard barrel size and a straight tongue angle. With a maximum operating temperature of 194°F and a maximum voltage of 35kV, it's ideal for a variety of applications, including industrial, commercial, and residential electrical systems. Its compact size and lightweight design make it easy to install, reducing labor costs and increasing efficiency. Suitable for use with stranded copper wire sizes from 4/0 AWG, this lug is a reliable choice for electrical connections.
Top product features:
- One-Hole Compression Lug design allows for secure and efficient termination of conductors
- Termination Style Crimp provides a reliable and long-lasting connection
- Maximum Operating Temperature of 194 Degrees F enables use in a wide range of applications
Top product applications:
- Bus Construction
- Cable Tray Systems
- High-Voltage Power Distribution
Compression Lug, Barrel Size Standard, Color Code White, Die Code 298, Tongue Angle Straight, Tongue Width 1.17 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 1.50
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on February 28, 2026 3:16pm UTC
Category: Electrical Connectors
