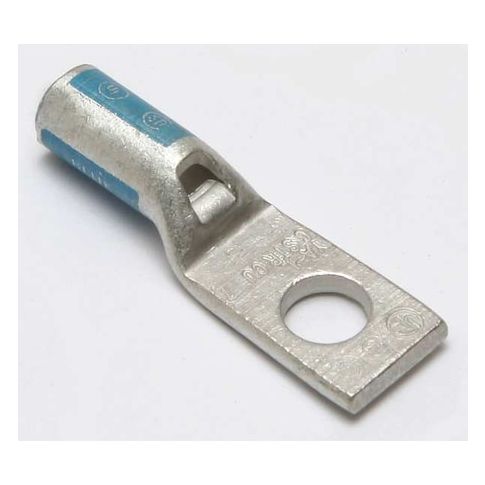

One-Hole Compression Lug, 6 AWG Max, #8, #10 Stud, Standard Barrel, Copper, Blue MPN:YA6CL1BOX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4681975
One-Hole Compression Lug, 6 AWG Max, #8, #10 Stud, Standard Barrel, Copper, Blue
The Burndy One-Hole Compression Lug is a reliable and efficient termination solution for copper conductors. Designed for use with stranded copper wire sizes 6 AWG, this lug features a standard barrel and straight tongue angle for easy installation. With a maximum operating temperature of 194°F and a maximum voltage of 35 kV, it's suitable for a wide range of applications, including electrical distribution systems and industrial control panels. CSA certified and UL listed, this lug offers a high level of safety and reliability, making it an excellent choice for use in demanding electrical environments.
Top product features:
- Compression Lug for Conductor Material Copper
- For Stranded Copper Wire Size Minimum 6 AWG
- Termination Style Crimp
Top product applications:
- Power distribution and control systems
- Electrical panel boards
- Switchgear and circuit breakers
Compression Lug, Barrel Size Standard, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.41 in, For Conductor Material Copper, For Stud Size #10, #8, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 0.50
- Package Height: 0.20
- Package Weight: 0.05
Product info last updated on April 10, 2026 11:06am UTC
Category: Electrical Connectors
