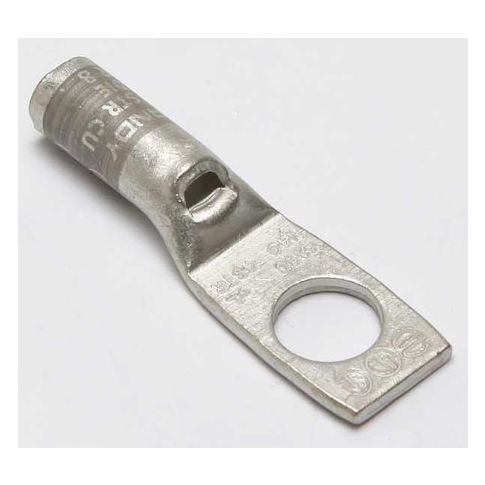

One-Hole Compression Lug, 4 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Gray MPN:YA4CL4BOX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4680085
One-Hole Compression Lug, 4 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Gray
The Burndy One-Hole Compression Lug is a reliable and efficient connector for copper stranded wire applications. Suitable for use with 4 AWG max wire, this lug features a standard barrel size and gray color code, making it easy to identify and install. Its copper construction ensures maximum conductivity and durability, while the straight tongue angle and 0.58 in tongue width provide a secure crimp. Ideal for use in electrical and industrial applications, this lug can withstand temperatures up to 194°F and voltages up to 35 kV AC, making it a versatile and trustworthy solution for a variety of tasks.
Top product features:
- One-Hole Lug Compression Connector that can be used with stranded copper wire up to 4 AWG.
- Compression Lug that can withstand a maximum operating temperature of 194 Degrees F.
- Termination Style that allows for a crimp connection.
Top product applications:
- Automotive Electrical Systems
- Heavy Duty Equipment Wiring
- Industrial Power Distribution
One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 0.50
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on January 31, 2026 6:56am UTC
Category: Electrical Connectors
