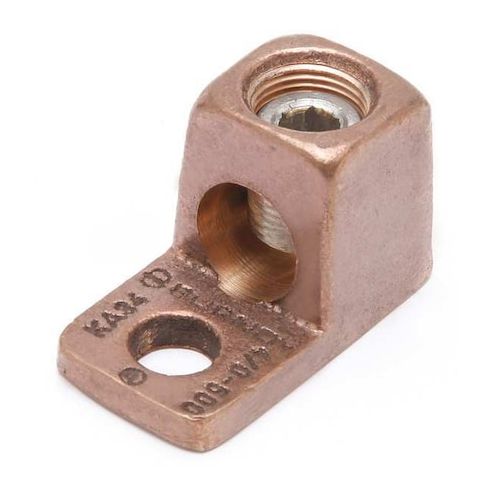

Mechanical Lug, 500 kcmil Max, 1 Conductor, 1 Hole, 1/2 in Stud, Copper MPN:KA34
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4680067
Mechanical Lug, 500 kcmil Max, 1 Conductor, 1 Hole, 1/2 in Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector for copper stranded conductors. Designed for use with 4/0 AWG to 500 kcmil wire, it features a sturdy hex head and a single 1/2 inch stud. The connector's compact size and copper body ensure optimal heat dissipation and a maximum operating temperature of 194°F. Suitable for a variety of applications, including electrical panels, switchgear, and control systems, the Mechanical Lug provides a secure and vibration-resistant connection. Its durability and ease of use make it an ideal choice for electricians and installers working with copper conductors.
Top product features:
- Mechanical Lug design allows for secure connection of stranded copper wires up to 500 kcmil in size.
- Copper construction provides excellent electrical conductivity and corrosion resistance.
- Hex head style provides a secure and easy-to-use connection method.
Top product applications:
- Electrical Panel Installation
- Bus Bar Connection
- Generator Connection
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, For Stud Size 1/2 in, Head Style Hex, Number of Holes 1, Hole Diameter 0.56 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1.38 in, Tongue Thickness 0.28 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.30
- Package Height: 1.60
- Package Weight: 0.55
Product info last updated on March 3, 2026 8:41pm UTC
Category: Electrical Connectors
