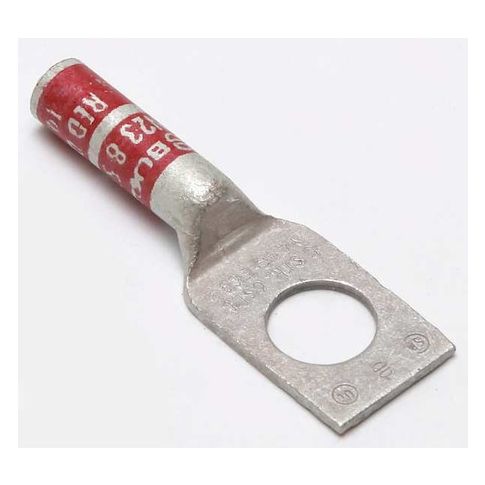

One-Hole Compression Lug, 8 AWG Max, 3/8 in Stud, Long Barrel, Copper, Red MPN:YA8CTC38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4679595
One-Hole Compression Lug, 8 AWG Max, 3/8 in Stud, Long Barrel, Copper, Red
The Burndy One-Hole Compression Lug is a reliable and efficient termination solution for copper conductors. Suitable for use with stranded copper wire sizes from 8 AWG, this lug features a long barrel design and straight tongue angle for secure crimping. Certified to CSA and UL 486A-486B standards, it withstands temperatures up to 194°F and voltages up to 35 kV. Ideal for use in a variety of applications, including electrical distribution systems and industrial power transmission. Its compact size and ease of installation make it a convenient choice for professionals and DIYers alike.
Top product features:
- Copper construction provides electrical conductivity.
- Termination style is crimp for secure connection.
- Maximum operating temperature is 194 Degrees F for reliable performance in high-temperature environments.
Top product applications:
- Bus bar connections
- Copper wire termination in electrical panels
- Low voltage electrical connections
Compression Lug, Barrel Size Long, Color Code Red, Die Code 49, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 0.60
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on February 10, 2026 3:29pm UTC
Category: Electrical Connectors
