Offset Adapter, 3/0 AWG Max, Standard Barrel, Aluminum, White MPN:AYPO3/0
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4679552
Offset Adapter, 3/0 AWG Max, Standard Barrel, Aluminum, White

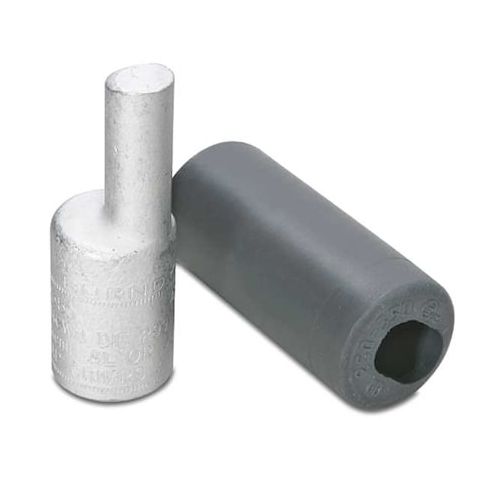

The Burndy Offset Adapter is a versatile and reliable solution for electrical connections. Designed for use with aluminum and copper conductors, this adapter accommodates stranded copper wire sizes from 3/0 AWG, making it suitable for a wide range of applications. Its offset connection orientation and 2-crimp design ensure secure and efficient connections, with a maximum voltage rating of 35 kV. Ideal for use in electrical systems, industrial equipment, and power distribution networks, this adapter offers a convenient and cost-effective solution for professionals and DIYers alike. Its compact size and easy installation make it a valuable addition to any electrical toolkit.
Top product features:
- Compression pin terminal for stranded copper wire with a minimum size of 3/0 AWG and a maximum size of 3/0 AWG.
- Has two crimps for secure connections.
- Has a contact finish of tin for corrosion resistance.
Top product applications:
- Electrical Panel Installation
- Wire Harness Assembly
- Low Voltage Power Distribution System
Compression Pin Terminal, Connection Orientation Offset, Die Code 298, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 2, Pin Diameter 0.375 in, Pin Equivalent Wire Size 1/0 AWG, Pin Length 1.22 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 0.86 in, Barrel Length 1.11 in, Color Code White
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.30
- Package Height: 1.00
- Package Weight: 0.15
Product info last updated on January 30, 2026 11:19am UTC
Category: Electrical Connectors
