Two-Hole Compression Lug, 4 AWG Max, #10 Stud, Standard Barrel, Copper, Gray MPN:YAV4CL2NT10FX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4679367

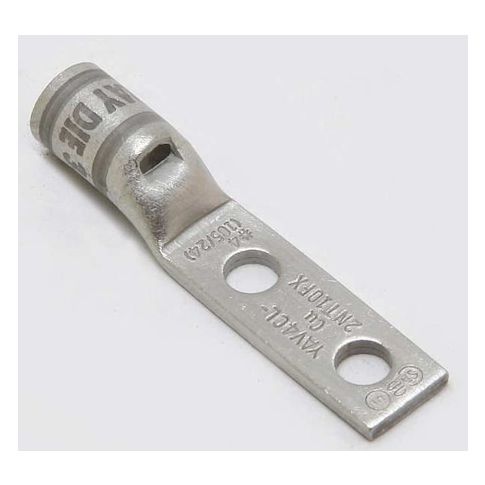

Two-Hole Compression Lug, 4 AWG Max, #10 Stud, Standard Barrel, Copper, Gray
The Burndy Two-Hole Compression Lug is a reliable and efficient termination solution for copper stranded wire sizes up to 4 AWG. With a #10 stud and standard barrel design, this lug is ideal for a variety of applications, including electrical panels, switchgear, and motor control systems. Its CSA certification and UL listing ensure compliance with industry standards. The lug's copper construction and crimp termination style provide a secure and durable connection, while its gray color coding and inspection holes facilitate easy identification and verification. Suitable for operating temperatures up to 194°F and voltages up to 35 kV.
Top product features:
- Two-Hole Compression Lug provides a secure crimp termination for stranded copper wire up to 4 AWG.
- The lug has a standard barrel size with a straight tongue angle for easy wire installation.
- The lug has two inspection holes for visual verification of wire connection.
Top product applications:
- Power distribution systems
- Electrical panel connections
- Control panel wiring
Compression Lug, Barrel Size Standard, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.41 in, For Conductor Material Copper, For Stud Size #10, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 0.50
- Package Height: 0.50
- Package Weight: 0.01
Product info last updated on February 1, 2026 11:48am UTC
Category: Electrical Connectors
