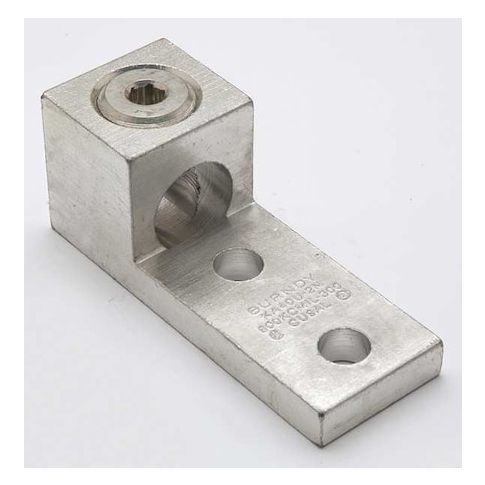

Mechanical Lug, 800 kcmil Max, 1 Conductor, 2 Hole, 1/2 in Stud, Aluminum MPN:KA40U2N
Mechanical Lug, 800 kcmil Max, 1 Conductor, 2 Hole, 1/2 in Stud, Aluminum
The Burndy Mechanical Lug is a reliable and efficient connector for aluminum and copper conductors. Suitable for stranded copper wire sizes from 300 to 800 kcmil, this lug is perfect for a variety of applications, including electrical distribution, transmission, and industrial power systems. Its durable aluminum body and hex socket head provide a secure connection, while its two-hole design allows for easy installation and versatility. With a maximum operating temperature of 194°F and voltage rating of 600V, this lug is designed to withstand harsh environments and provide long-lasting performance. Ideal for use in a range of industries, including construction and manufacturing.
Top product features:
- For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size Minimum 300 kcmil, For Stranded Copper Wire Size Maximum 800 kcmil
- Has a hex socket head style
- Connects two wires with a 1/2 in stud
Top product applications:
- Bus Bar Connectors
- Electrical Panel Connectors
- Power Distribution Connectors
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 300 kcmil, For Stranded Copper Wire Size - Maximum 800 kcmil, For Stud Size 1/2 in, Head Style Hex Socket, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 3.03 in, Tongue Width 1.77 in, Tongue Thickness 0.5 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 1.90
- Package Height: 1.90
- Package Weight: 0.65
Product info last updated on February 1, 2026 5:50pm UTC
Category: Electrical Connectors
