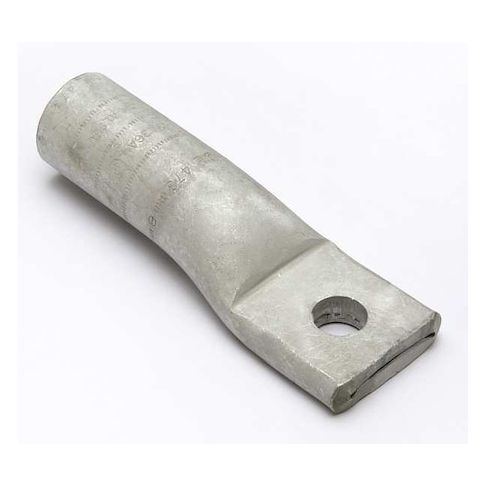

One-Hole Compression Lug, 700 kcmil Max, 1/2 in Stud, Standard Barrel, Aluminum, Yellow MPN:YA39A1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4678186
One-Hole Compression Lug, 700 kcmil Max, 1/2 in Stud, Standard Barrel, Aluminum, Yellow
The Burndy One-Hole Compression Lug is a reliable and efficient termination solution for aluminum and copper conductors. This lug features a standard barrel and straight tongue angle, allowing for easy installation and secure connections. With a maximum operating temperature of 194°F and a maximum voltage of 35kV, it is suitable for a variety of applications, including power distribution and transmission systems. The lug is CSA certified and UL listed, ensuring compliance with industry standards. Its compact design and ease of use make it an ideal choice for electrical contractors and engineers working on projects that require high-quality connections.
Top product features:
- One-Hole Compression Lug for Aluminum and Copper Conductors
- Termination Style is Crimp
- Maximum Operating Temperature is 194 Degrees F
Top product applications:
- Power distribution systems
- High-voltage electrical transmission lines
- Heavy industrial electrical systems
Compression Lug, Barrel Size Standard, Color Code Yellow, Die Code 936, Tongue Angle Straight, Tongue Width 2.05 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 750 kcmil, For Stranded Copper Wire Size - Maximum 700 kcmil, Inspection Hole No, Hole Center to Center Not Applicable, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 2.20
- Package Height: 2.00
- Package Weight: 0.45
Product info last updated on February 19, 2026 2:20am UTC
Category: Electrical Connectors
