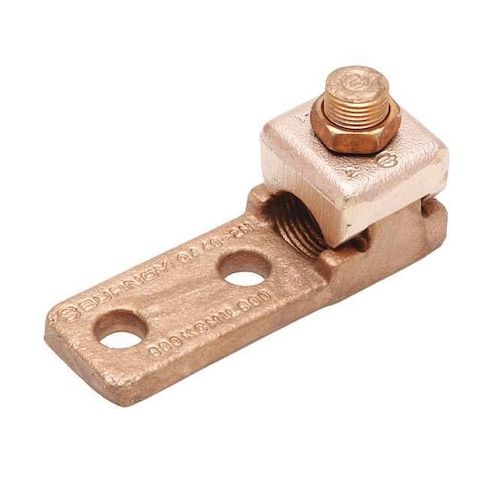

Mechanical Lug, 1000 kcmil Max, 1 Conductor, 2 Hole, 1/2 in Stud, Copper MPN:QA442N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4677434
Mechanical Lug, 1000 kcmil Max, 1 Conductor, 2 Hole, 1/2 in Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector designed for use with stranded copper wire. Its maximum operating temperature of 194°F and voltage rating of 600V make it suitable for a variety of applications, including electrical distribution and transmission systems. The lug's copper body and hex head provide a secure connection, while its two holes and 1/2 in stud accommodate a range of conductor sizes. Ideal for use in the field or in industrial settings, this mechanical lug offers a durable and long-lasting solution for connecting copper conductors.
Top product features:
- Connects stranded copper wire with a minimum size of 850 kcmil and a maximum size of 1000 kcmil.
- Has a hex head style for easy installation and secure connection.
- Operates at a maximum temperature of 194 Degrees F and a maximum voltage of 600 V.
Top product applications:
- Bus bar connections
- Copper wire termination in electrical panels
- Low-voltage electrical connections in industrial settings
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 850 kcmil, For Stranded Copper Wire Size - Maximum 1000 kcmil, For Stud Size 1/2 in, Head Style Hex Head, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 3 in, Tongue Width 1.88 in, Tongue Thickness 0.5 in, Connector Type Terminal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 2.10
- Package Height: 3.00
- Package Weight: 2.45
