Insulated Multitap Connector, 4.01 In. L MPN:1PBS250
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4677093
Insulated Multitap Connector, 4.01 In. L

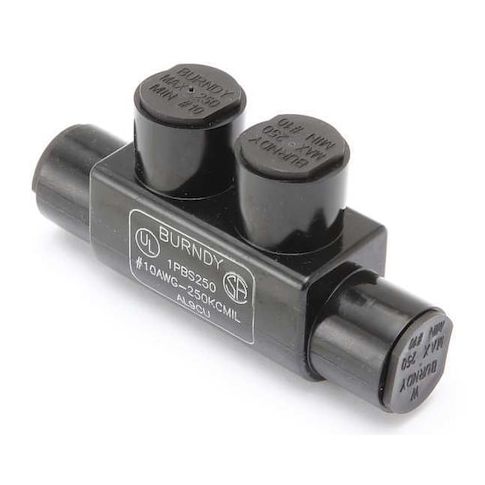

The Insulated Multitap Connector from Burndy is a reliable and versatile solution for electrical connections. With a durable aluminum body and a maximum operating temperature of 194°F, it can withstand demanding applications. Suitable for use with aluminum and copper conductors, it's ideal for stranded copper wire sizes between 10 AWG and 250 kcmil. The connector's hex head style and 5/16 inch size make it easy to install and access. Perfect for use in industrial, commercial, and residential settings, this connector provides a secure and efficient way to connect multiple wires, making it a valuable addition to any electrical system.
Top product features:
- Insulated to protect against electrical shock
- Accepts stranded copper wire sizes from 10 AWG to 250 kcmil
- Operates at a maximum voltage of 600 V
Top product applications:
- Wire harness assembly for automotive applications
- Circuit protection and testing for industrial equipment
- Temporary power connections for construction sites
Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards UL Listed, Compatible with Product Type Code Conductor
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.00
- Package Height: 1.00
- Package Weight: 0.25
Product info last updated on January 23, 2026 11:52pm UTC
Category: Electrical Connectors
