Two-Hole Compression Lug, 8 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Red MPN:YA8CL2TC14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4674993

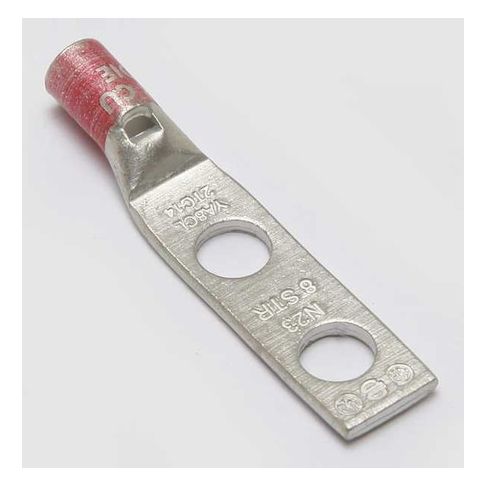

Two-Hole Compression Lug, 8 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Red
This two-hole compression lug is designed for use with 8 AWG copper wire and 1/4 inch studs, making it ideal for a variety of electrical applications. The lug's copper construction provides excellent conductivity and durability, while its standard barrel size and straight tongue angle ensure secure connections. With a maximum operating temperature of 194°F and a maximum voltage of 35kV, this lug is suitable for use in a range of settings, including industrial, commercial, and residential electrical systems. Its CSA certification and UL listing ensure compliance with industry standards.
Top product features:
- Two-Hole Compression Lug design allows for secure connection of two conductors
- Compression lug features a standard barrel size for universal compatibility
- Copper construction provides high electrical conductivity and durability
Top product applications:
- Panel Boards
- Distribution Boxes
- Switchgear
Compression Lug, Barrel Size Standard, Color Code Red, Die Code 49, Tongue Angle Straight, Tongue Width 0.44 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 0.40
- Package Height: 0.20
- Package Weight: 0.01
Product info last updated on January 23, 2026 11:39pm UTC
Category: Electrical Connectors
