Mechanical Lug, 500 kcmil Max, 1 Conductor, 1 Hole, 3/4 in Stud, Copper MPN:QDA34
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4674862

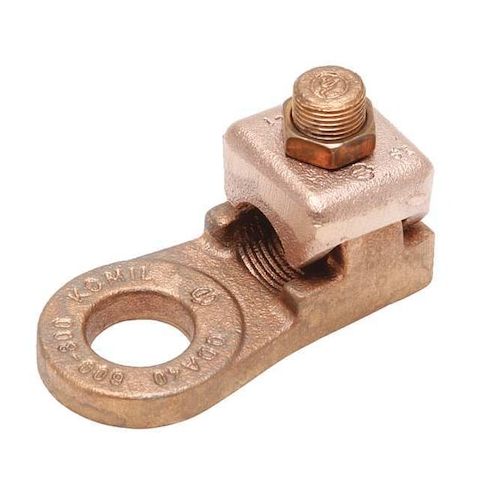

Mechanical Lug, 500 kcmil Max, 1 Conductor, 1 Hole, 3/4 in Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient solution for connecting stranded copper wire up to 500 kcmil in size. Its copper body and hex head design provide a secure and durable connection, suitable for a variety of applications in the electrical industry. Ideal for use in commercial and industrial settings, this lug is perfect for connecting conductors in electrical panels, switchgear, and other high-voltage equipment. With a maximum operating temperature of 194°F and a maximum voltage of 600V, the Burndy Mechanical Lug offers a safe and reliable connection for demanding electrical applications.
Top product features:
- For conductor material copper, the product is designed for use with stranded copper wire.
- The product is suitable for conductor wire size between 400 kcmil and 500 kcmil.
- The product features a hex head design with a single hole for installation.
Top product applications:
- Electrical Panel Installation
- Medium Voltage Power Distribution
- Low Voltage Lighting Systems
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 400 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, For Stud Size 3/4 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.81 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1.88 in, Tongue Thickness 0.31 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 1.90
- Package Height: 0.90
- Package Weight: 0.85
Product info last updated on January 23, 2026 11:56pm UTC
Category: Electrical Connectors
