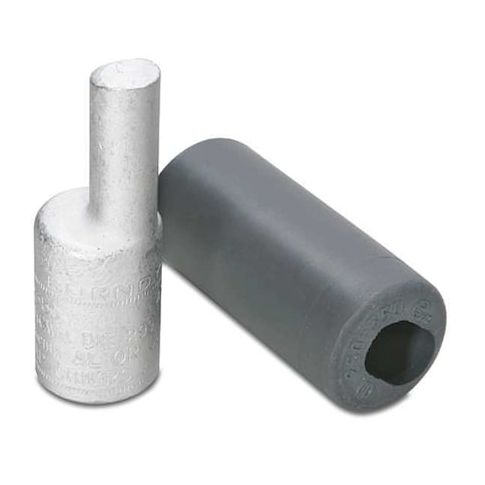

Offset Adapter, 350 kcmil Max, Standard Barrel, Aluminum, Brown MPN:AYPO350
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4674686
Offset Adapter, 350 kcmil Max, Standard Barrel, Aluminum, Brown
This Offset Adapter from Burndy is a versatile electrical connector designed for use with stranded copper wire up to 350 kcmil in size. Its aluminum construction and rubber insulation ensure reliable performance in high-voltage applications up to 35 kV. The adapter features a standard barrel design and a compression pin terminal, allowing for secure connections in a variety of settings. Suitable for use with aluminum and copper conductors, this adapter is ideal for electrical installations in industrial, commercial, and residential settings, including power distribution systems and electrical panel upgrades. Its compact design makes it easy to integrate into existing systems.
Top product features:
- Makes connections to stranded copper wire with a minimum size of 350 kcmil and a maximum size of 350 kcmil.
- Has a compression pin terminal with a die code of 299.
- Is designed to be used in applications with a maximum voltage of 35 kV.
Top product applications:
- Busbar termination
- Cable splicing
- Electrical panel mounting
Compression Pin Terminal, Connection Orientation Offset, Die Code 299, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 350 kcmil, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 2, Pin Diameter 0.578 in, Pin Equivalent Wire Size 250 kcmil, Pin Length 1.34 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 1.11 in, Barrel Length 1.07 in, Color Code Brown
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.00
- Package Height: 1.50
- Package Weight: 0.24
Product info last updated on January 23, 2026 11:52pm UTC
Category: Electrical Connectors
