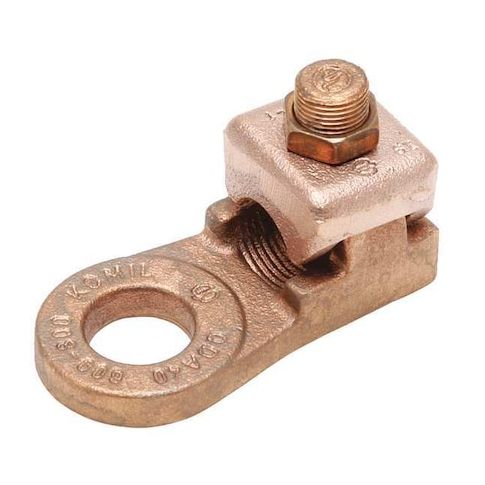

Mechanical Lug, 4 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper MPN:QDA4C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4674442
Mechanical Lug, 4 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector for stranded copper wires, suitable for applications where high voltage and temperature resistance are required. With a maximum operating temperature of 194°F and a maximum voltage of 600V, this lug is ideal for use in electrical systems, such as panel boards, switchboards, and motor control centers. Its copper body and 3/8 inch stud ensure a secure and durable connection, while its hex head design provides easy installation and removal. Perfect for use with wires from 8 AWG to 4 AWG, this lug is a versatile solution for a variety of electrical applications.
Top product features:
- For Conductor Material Copper, For Stranded Copper Wire Size Minimum 8 AWG, For Stranded Copper Wire Size Maximum 4 AWG
- Connects stranded copper wire with a minimum size of 8 AWG and a maximum size of 4 AWG
- Accepts a 3/8 in stud for secure attachment
Top product applications:
- Household electrical wiring
- Industrial electrical wiring
- Automotive electrical wiring
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, For Stud Size 3/8 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.44 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1 in, Tongue Thickness 0.22 in, Connector Type Terminal
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.00
- Package Height: 0.80
- Package Weight: 0.10
Product info last updated on March 14, 2026 2:12am UTC
Category: Electrical Connectors
