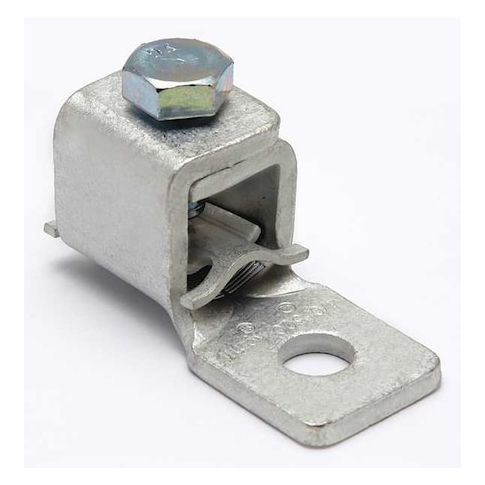

Mechanical Lug, 6 AWG Max, 1 Conductor, 1 Hole, #10 Stud, Copper MPN:KPA8CTP
Mechanical Lug, 6 AWG Max, 1 Conductor, 1 Hole, #10 Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector for copper stranded wires. Suitable for use with conductors up to 6 AWG and #10 studs, this lug provides a secure connection for a variety of applications. Its copper body ensures high conductivity and durability, while its slotted head and single hole design make it easy to install and terminate. Ideal for use in electrical systems, the Burndy Mechanical Lug can withstand temperatures up to 194°F and voltages up to 600V, making it a versatile solution for a range of industries, including electrical contracting, manufacturing, and more.
Top product features:
- Connects stranded copper wire up to 6 AWG
- Accepts a #10 stud for secure termination
- Operates at a maximum temperature of 194°F and voltage of 600V
Top product applications:
- Industrial electrical wiring and panel building
- Heavy-duty electrical connections in power distribution systems
- Automotive wiring and electrical system assembly
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, For Stud Size #10, Head Style Slotted, Number of Holes 1, Hole Diameter 0.2 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.56 in, Tongue Width 0.38 in, Tongue Thickness 0.07 in, Connector Type Terminal
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.60
- Package Width: 1.00
- Package Height: 0.40
- Package Weight: 0.01
Product info last updated on February 12, 2026 11:50am UTC
Category: Electrical Connectors
