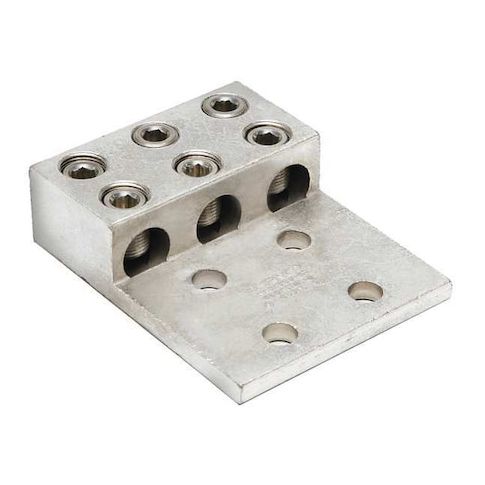

Mechanical Lug, 600 kcmil Max, 3 Conductor, 4 Hole, 1/2 in Stud, Aluminum MPN:KK3A36U4N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4670723
Mechanical Lug, 600 kcmil Max, 3 Conductor, 4 Hole, 1/2 in Stud, Aluminum
The Burndy Mechanical Lug is a versatile and reliable connector for aluminum and copper conductors. With a maximum operating temperature of 194°F and a maximum voltage of 600V, it can handle high-performance applications in various industries. The lug is designed for use on stranded copper wire sizes from 2 AWG to 600 kcmil, making it suitable for a wide range of conductor sizes. Its 1/2 in stud size and 4-hole design provide secure connections in applications such as electrical distribution, power transmission, and industrial control systems. Its durable aluminum body and hex socket head ensure easy installation and long-lasting performance.
Top product features:
- Mechanical Lug for Aluminum, Copper, and Stranded Copper Wire
- Connects three conductors together
- Secures to a 1/2 inch stud with a hex socket head
Top product applications:
- Power distribution systems for commercial and industrial applications
- High-voltage electrical installations in buildings and facilities
- Heavy-duty electrical systems in manufacturing and processing plants
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, For Stud Size 1/2 in, Head Style Hex Socket, Number of Holes 4, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 3, Number of Terminations 6, Tongue Length 3 in, Tongue Width 4.22 in, Tongue Thickness 0.38 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.40
- Package Height: 1.50
- Package Weight: 1.55
Product info last updated on March 17, 2026 4:43pm UTC
Category: Electrical Connectors
