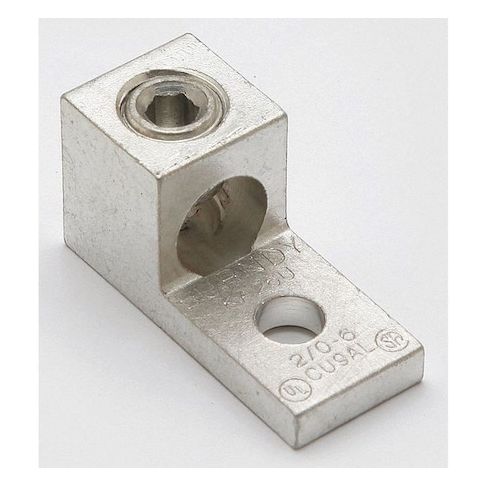

Mechanical Lug, 2/0 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Aluminum MPN:KA26U
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4669987
Mechanical Lug, 2/0 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Aluminum
The Burndy Mechanical Lug is a reliable and efficient connector for aluminum and copper conductors. Suitable for stranded copper wire sizes from 14 AWG to 2/0 AWG, this lug is ideal for a variety of applications, including electrical panels, switchgear, and motor control centers. Its aluminum body provides excellent durability and resistance to corrosion, while its hex head style makes it easy to install and tighten. With a maximum operating temperature of 194°F and a voltage rating of 600V, this lug is perfect for use in high-temperature and high-voltage applications, ensuring safe and reliable connections in demanding electrical systems.
Top product features:
- Connects stranded copper wire up to 2/0 AWG in size
- Accepts aluminum and copper conductor materials
- Has a maximum operating temperature of 194 degrees Fahrenheit
Top product applications:
- Bus bar connections
- Circuit breaker connections
- Grounding applications
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, For Stud Size 1/4 in, Head Style Hex, Number of Holes 1, Hole Diameter 0.27 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.81 in, Tongue Width 0.64 in, Tongue Thickness 0.19 in, Connector Type Lug
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 0.80
- Package Height: 0.70
- Package Weight: 0.05
Product info last updated on February 16, 2026 3:05pm UTC
Category: Electrical Connectors
