Insulated Multitap Connector, 2.97 In. L MPN:BIBS2503
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4669061

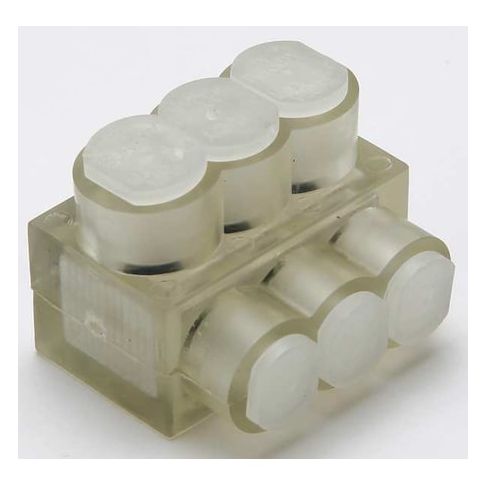

Insulated Multitap Connector, 2.97 In. L
The Insulated Multitap Connector from Burndy is a reliable and versatile solution for a variety of applications. With its durable aluminum body and clear, unplated finish, this connector is perfect for use with aluminum or copper conductors. Its 3-port design and hex head style make it easy to install and connect multiple wires. Ideal for use in high-temperature environments up to 194°F, this connector is rated for 600V and is UL 94 V-0 flammability rated. Suitable for use in a range of industries, including electrical, industrial, and construction, this connector provides a secure and efficient connection for stranded copper wire sizes 10 AWG to 250 kcmil.
Top product features:
- Insulated for protection against electrical shock and temperature up to 194°F.
- Supports multiple conductor connections with three ports.
- Compatible with a range of conductor materials, including aluminum and copper.
Top product applications:
- Wire harnesses for heavy-duty equipment
- Automotive wiring systems
- Industrial electrical connections
Multitap Connector, Body Material Aluminum, Color Clear, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 3, UL 94 Flammability Rating V-0, RoHS Compliant Yes
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.00
- Package Height: 2.20
- Package Weight: 0.40
Product info last updated on February 24, 2026 8:39pm UTC
Category: Electrical Connectors
