Offset Adapter, 750 kcmil Max, Standard Barrel, Aluminum, Yellow MPN:AYPO750
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4668955

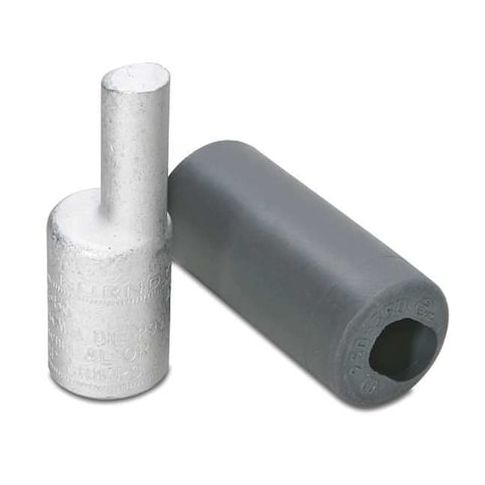

Offset Adapter, 750 kcmil Max, Standard Barrel, Aluminum, Yellow
This offset adapter is designed for use with stranded copper wire and aluminum conductors, accommodating sizes from 750 kcmil. It features a standard barrel made of aluminum, with a yellow color code and a maximum voltage of 35 kV. The adapter has three crimps and a tin-coated contact finish. Its compact design measures 1.59 inches in length and 1.46 inches in diameter. Suitable for a variety of applications, including electrical connections and wiring systems, this adapter ensures secure and reliable connections. Its durability and versatility make it a valuable addition to any electrical professional's toolkit.
Top product features:
- Offset connection orientation for easier installation
- Three crimps for secure connection to stranded copper wire
- Tin contact finish for corrosion resistance and reliable electrical connection
Top product applications:
- High-Voltage Power Distribution
- Substation Equipment Assembly
- Electrical Transmission Line Connections
Offset Adapter, Connection Orientation Offset, Die Code 936, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 750 kcmil, For Stranded Copper Wire Size - Maximum 750 kcmil, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 3, Pin Diameter 0.813 in, Pin Equivalent Wire Size 500 kcmil, Pin Length 1.76 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 1.46 in, Barrel Length 1.59 in, Color Code Yellow
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 3.50
- Package Height: 1.60
- Package Weight: 0.50
Product info last updated on February 7, 2026 6:35am UTC
Category: Electrical Connectors
