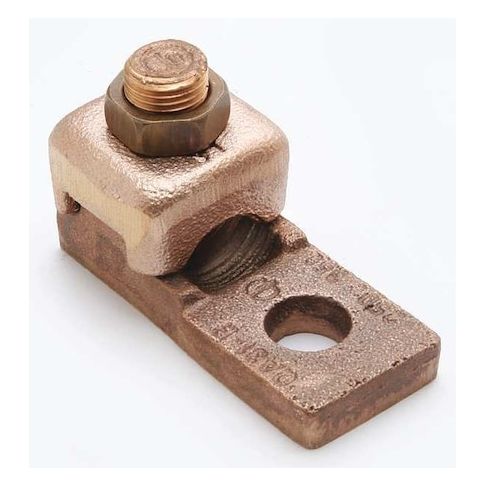

Mechanical Lug, 1 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Copper MPN:QA1CB

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 1 AWG, For Stud Size 1/4 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.28 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.75 in, Tongue Width 0.63 in, Tongue Thickness 0.22 in, Connector Type Terminal
