Two-Hole Compression Lug, 1000 kcmil Max, 1/2 in Stud, Long Barrel, Copper, White MPN:YA442N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4667546

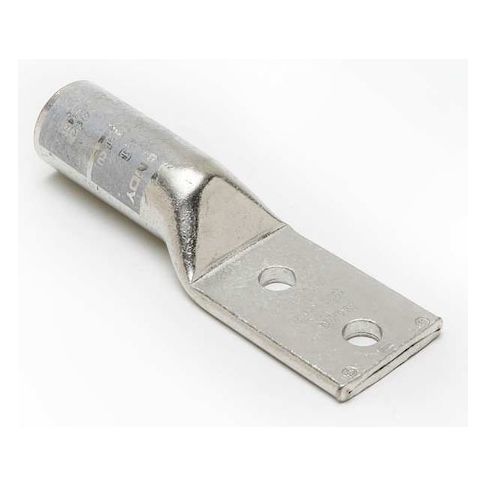

Two-Hole Compression Lug, 1000 kcmil Max, 1/2 in Stud, Long Barrel, Copper, White
The Burndy Two-Hole Compression Lug is a reliable and efficient solution for connecting stranded copper wire up to 1000 kcmil. Its long barrel design provides secure crimping and a straight tongue angle for easy installation. With a maximum operating temperature of 194°F and a voltage rating of 35 kV, this lug is suitable for a variety of applications, including electrical distribution systems and industrial power transmission. CSA certified and UL listed, it meets rigorous safety standards. Ideal for use in harsh environments, this compression lug offers a durable and long-lasting connection.
Top product features:
- Two-holed design for secure connection to two conductors
- Copper construction for high conductivity and durability
- Long barrel design for easy access and crimping of stranded copper wire up to 1000 kcmil
Top product applications:
- Bus bar connections
- Power distribution systems
- High-voltage electrical applications
Compression Lug, Barrel Size Long, Color Code White, Die Code 27, Tongue Angle Straight, Tongue Width 2.19 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 1000 kcmil, For Stranded Copper Wire Size - Maximum 1000 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 2.30
- Package Height: 1.50
- Package Weight: 1.60
Product info last updated on February 14, 2026 4:07am UTC
Category: Electrical Connectors
