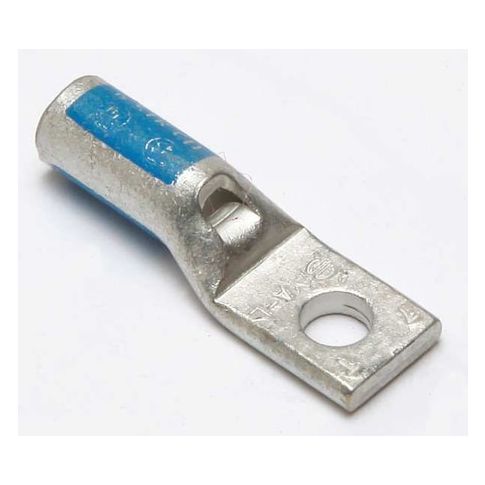

One-Hole Compression Lug, 6 AWG Max, #6 Stud, Standard Barrel, Copper, Blue MPN:YA6CLNT6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4666654
One-Hole Compression Lug, 6 AWG Max, #6 Stud, Standard Barrel, Copper, Blue
This One-Hole Compression Lug is a reliable and efficient solution for connecting copper conductors in a wide range of applications. Suitable for stranded copper wire sizes up to 6 AWG, it features a standard barrel size and straight tongue angle for easy installation. The lug's copper construction and crimp termination ensure a secure and high-quality connection, making it ideal for use in electrical systems, industrial automation, and commercial construction projects. With a maximum operating temperature of 194°F and 35kV AC voltage rating, this lug meets CSA and UL standards, providing peace of mind in demanding applications.
Top product features:
- One-Hole Lug Compression Connector has a termination style of crimp, which securely attaches the conductor to the stud.
- The lug has a straight tongue angle, allowing for easy installation and reduced risk of damage to the conductor.
- The connector is rated for a maximum operating temperature of 194 Degrees F, ensuring reliable performance in a wide range of environments.
Top product applications:
- Generator electrical connections
- Automotive electrical connections
- Industrial electrical connections
One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.29 in, For Conductor Material Copper, For Stud Size #6, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 0.30
- Package Height: 0.30
- Package Weight: 0.00
Product info last updated on March 23, 2026 2:33am UTC
Category: Electrical Connectors
