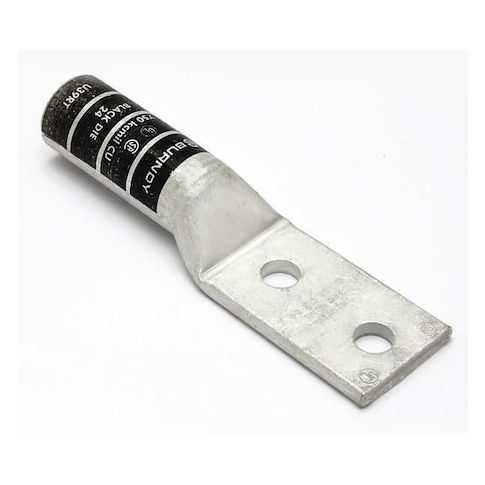

Two-Hole Compression Lug, 750 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Black MPN:YA392N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4665717
Two-Hole Compression Lug, 750 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Black
This Two-Hole Compression Lug from Burndy is a reliable and efficient solution for connecting copper conductors up to 750 kcmil in size. Its long barrel design provides a secure crimp termination, while the black color coding ensures easy identification in demanding electrical applications. Certified to CSA and UL 486A-486B standards, this lug is suitable for use in a wide range of industries, including power distribution, transmission, and industrial control. Its compact size and lightweight design make it ideal for use in tight spaces, and its high-temperature rating ensures reliable performance in harsh environments.
Top product features:
- Copper construction provides high electrical conductivity
- Compression lug design enables secure crimping of stranded copper wire
- Long barrel design accommodates large conductor sizes up to 750 kcmil
Top product applications:
- Busbar connections
- Power distribution systems
- High-voltage electrical connections
Compression Lug, Barrel Size Long, Color Code Black, Die Code 24, Tongue Angle Straight, Tongue Width 1.91 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 750 kcmil, For Stranded Copper Wire Size - Maximum 750 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.80
- Package Width: 1.80
- Package Height: 1.40
- Package Weight: 1.10
Product info last updated on February 4, 2026 9:31am UTC
Category: Electrical Connectors
