Mechanical Lug, 2/0 AWG Max, 1 Conductor, 1 Hole, 1/2 in Stud, Copper MPN:QDA26
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4665577

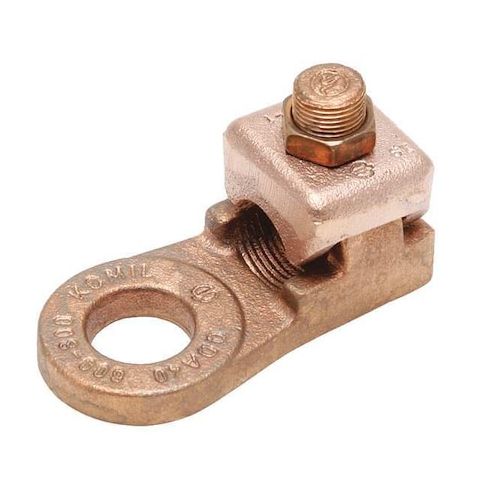

Mechanical Lug, 2/0 AWG Max, 1 Conductor, 1 Hole, 1/2 in Stud, Copper
This mechanical lug is designed for use with copper stranded wire, accommodating sizes from 1/0 AWG to 2/0 AWG. Its copper body and 1/2 in stud provide a secure and reliable connection. The lug features a hex head style and a single hole with a diameter of 0.56 in. It can withstand operating temperatures up to 194°F and voltages up to 600V, making it suitable for a variety of applications, including electrical panel connections, motor connections, and other high-voltage installations. Its compact size and ease of use make it an ideal choice for electrical professionals.
Top product features:
- Connects stranded copper wires with a minimum size of 1/0 AWG and a maximum size of 2/0 AWG.
- Accepts a 1/2 in stud for secure attachment.
- Has a maximum operating temperature of 194 Degrees F and a maximum voltage of 600 V.
Top product applications:
- Electrical Panel Installation
- Power Distribution Systems
- Busbar Connections
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, For Stud Size 1/2 in, Head Style Hex, Number of Holes 1, Hole Diameter 0.56 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1.25 in, Tongue Thickness 0.31 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 4.80
- Package Height: 0.90
- Package Weight: 0.26
Product info last updated on March 14, 2026 12:37am UTC
Category: Electrical Connectors
