Two-Hole Compression Lug, 8 AWG Max, 3/8 in Stud, Long Barrel, Copper, Red MPN:YA8C2TC38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4665071

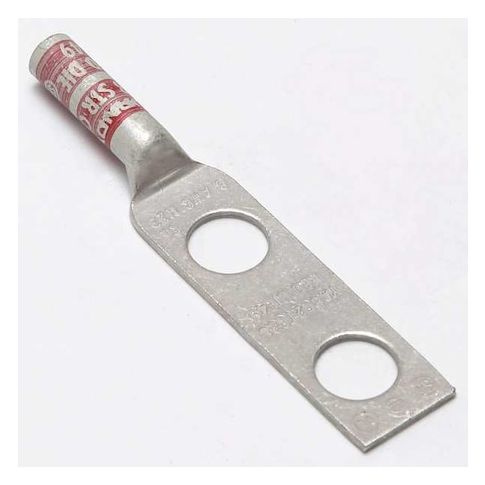

Two-Hole Compression Lug, 8 AWG Max, 3/8 in Stud, Long Barrel, Copper, Red
The Burndy Two-Hole Compression Lug is a high-quality electrical connector designed for use with copper stranded wire. Its long barrel and straight tongue angle provide secure crimping and reliable connections. Suitable for applications in the 35kV range, this lug is CSA certified and UL listed for safety and compliance. Its compact size and lightweight design make it ideal for use in a variety of industries, including electrical, construction, and manufacturing. With a maximum operating temperature of 194°F, this lug can withstand harsh environments and provide consistent performance over time. Its versatility and reliability make it a valuable addition to any electrical project.
Top product features:
- Two-Hole Compression Lug has a long barrel design for easy installation.
- Has a straight tongue angle for secure crimping of stranded copper wire.
- Meets CSA and UL 486A-486B standards for safe operation at high temperatures and voltages.
Top product applications:
- Electrical Panel Board Connections
- Distribution Board Lugs
- Bus Bar Connections
Compression Lug, Barrel Size Long, Color Code Red, Die Code 49, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 0.60
- Package Height: 0.20
- Package Weight: 0.01
Product info last updated on March 25, 2026 8:33am UTC
Category: Electrical Connectors
