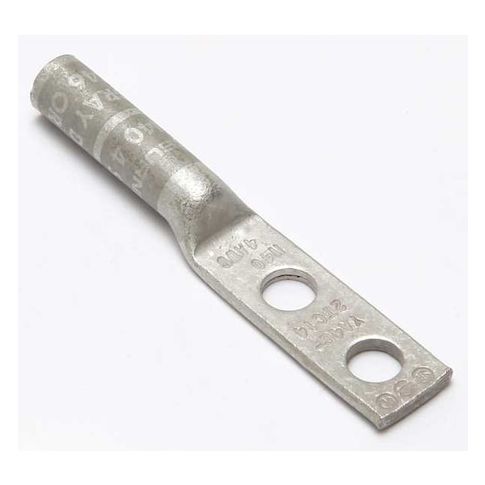

Two-Hole Compression Lug, 4 AWG Max, 1/4 in Stud, Long Barrel, Copper, Gray MPN:YA4C2TC14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4665026
Two-Hole Compression Lug, 4 AWG Max, 1/4 in Stud, Long Barrel, Copper, Gray
This two-hole compression lug is a reliable and efficient termination solution for copper conductors up to 4 AWG. Made from high-quality copper, it features a long barrel design and a straight tongue angle for secure crimping. The lug is CSA certified and UL listed for 35 kV, ensuring safe and reliable operation in a variety of applications. Suitable for use in industrial, commercial, and residential electrical systems, this lug is ideal for connection and termination of copper conductors in switchgear, panelboards, and other electrical equipment. Its compact size and easy installation make it a convenient choice for electricians.
Top product features:
- Two-Hole Compression Lug design allows for secure connection of two conductors.
- Copper construction provides excellent electrical conductivity and durability.
- Termination style crimp ensures a reliable and long-lasting connection.
Top product applications:
- Busway connections
- Electrical panel connections
- Motor connections
Compression Lug, Barrel Size Standard, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.5 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole No, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 0.40
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on February 11, 2026 1:58am UTC
Category: Electrical Connectors
