Split-Bolt Connector, 1/0 str to 350kcmil MPN:KSA350
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4664886

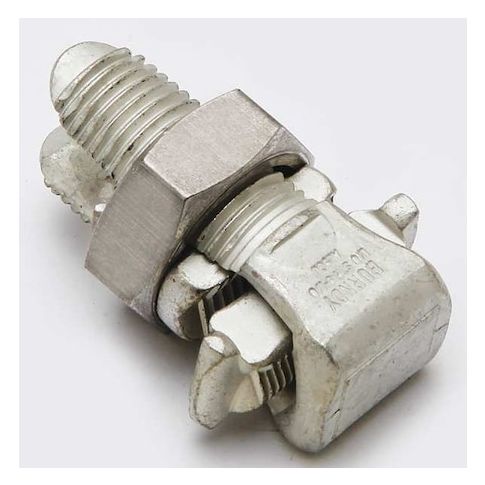

Split-Bolt Connector, 1/0 str to 350kcmil
The Burndy Split-Bolt Connector is a reliable and versatile electrical connector designed for use in a variety of applications. Suitable for aluminum or copper conductors, this connector can handle wire sizes from 1/0 AWG to 350 kcmil, making it ideal for use in commercial and industrial settings. Its square head design and hex nut ensure secure connections, while its tin-plated aluminum body provides excellent corrosion resistance. With a maximum operating temperature of 194°F and a maximum voltage of 35kV, this connector can withstand harsh environments. It's perfect for use in power distribution systems, electrical panels, and other high-voltage applications.
Top product features:
- Connects aluminum, copper, and other conductors with a wide range of wire sizes from 1/0 AWG to 350 kcmil.
- Allows for tapping into a run wire with tap wire sizes ranging from 4 AWG to 350 kcmil.
- Withstands operating temperatures up to 194 degrees F and voltages up to 35 kV.
Top product applications:
- Power Distribution Systems
- Electrical Panel Installation
- Industrial Automation and Control Systems
Split-Bolt Connector, Body Finish Tin Plated, Body Material Aluminum, For Conductor Material Aluminum, Copper, For Minimum Run Wire Size 1/0 AWG, For Maximum Run Wire Size 350 kcmil, For Minimum Tap Wire Size 4 AWG, 8 AWG, For Maximum Tap Wire Size 350 kcmil, Head Style Square Head, Hex Nut Size 1.69 in, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Torque 650 in-lb, Overall Length 3.24 in, Overall Width 1.73 in, RoHS Compliant Yes
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 2.30
- Package Height: 1.80
- Package Weight: 0.40
Product info last updated on February 13, 2026 4:05pm UTC
Category: Electrical Connectors
