One-Hole Compression Lug, 350 kcmil Max, 3/8 in Stud, Standard Barrel, Copper, Red MPN:YA31LNT38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4664441

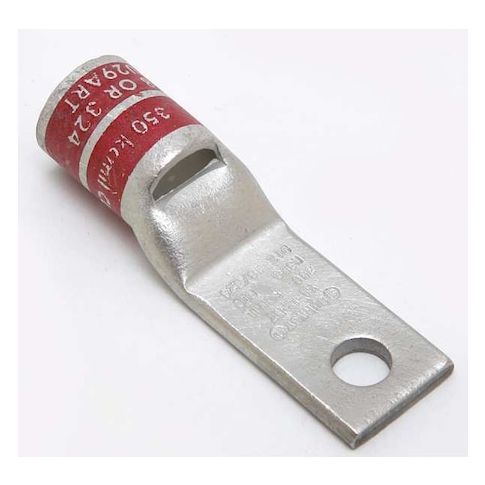

One-Hole Compression Lug, 350 kcmil Max, 3/8 in Stud, Standard Barrel, Copper, Red
This one-hole compression lug is designed for use with 350 kcmil stranded copper wire and 3/8 inch studs. The standard barrel and copper material provide reliable connections in high-temperature applications up to 194 degrees F and 35 kV voltage. The lug's straight tongue and 0.96 inch width ensure secure crimping. CSA certified and UL listed, this lug meets industry standards for safety and performance. Suitable for use in electrical distribution systems, the compression lug offers a reliable and efficient way to terminate conductors, making it an ideal choice for commercial and industrial applications.
Top product features:
- One-Hole Compression Lug features a standard barrel design.
- The lug is capable of terminating stranded copper wire in the 350 kcmil size range.
- The lug uses a crimp termination style.
Top product applications:
- Construction wiring for commercial buildings
- Industrial power distribution systems
- High-voltage transmission lines
Compression Lug, Barrel Size Standard, Color Code Red, Die Code 18, 324, Tongue Angle Straight, Tongue Width 0.96 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 350 kcmil, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 1.30
- Package Height: 1.30
- Package Weight: 0.20
Product info last updated on March 18, 2026 1:42pm UTC
Category: Electrical Connectors
