Mechanical Lug, 10 AWG Max, 1 Conductor, 1 Hole, #6 Stud, Copper MPN:KLU25
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4663145

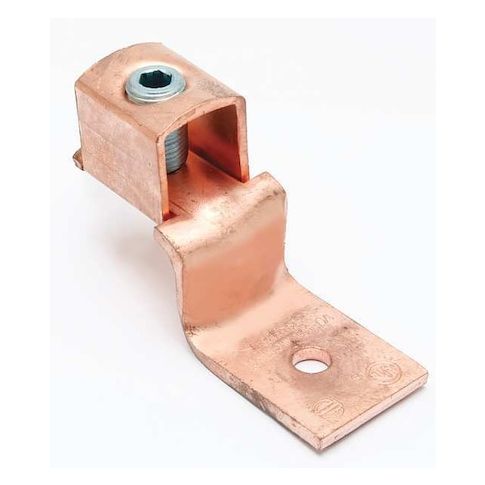

Mechanical Lug, 10 AWG Max, 1 Conductor, 1 Hole, #6 Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector for stranded copper wire applications. Suitable for use with copper conductors from 14 to 10 AWG, this lug features a #6 stud and a slotted head for easy termination. With a maximum operating temperature of 194°F and a voltage rating of 600V, it provides a secure connection in a variety of applications, including electrical panels, switchgear, and motor controls. Its compact design and copper body ensure a durable and long-lasting connection, making it an ideal choice for industries that require high-performance electrical connections.
Top product features:
- Connects stranded copper wire up to 10 AWG
- Accepts #6 stud for secure attachment
- Has a maximum operating temperature of 194°F
Top product applications:
- Electrical Panel Assembly
- Bus Bar Connections
- Switchgear and Control Panel Wiring
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 10 AWG, For Stud Size #6, Head Style Slotted, Number of Holes 1, Hole Diameter 0.14 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 0.31 in, Tongue Thickness 0.07 in, Connector Type Terminal
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 0.50
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on February 2, 2026 4:56pm UTC
Category: Electrical Connectors
