One-Hole Compression Lug, 4/0 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Purple MPN:YA28L4BOX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4662515
One-Hole Compression Lug, 4/0 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Purple

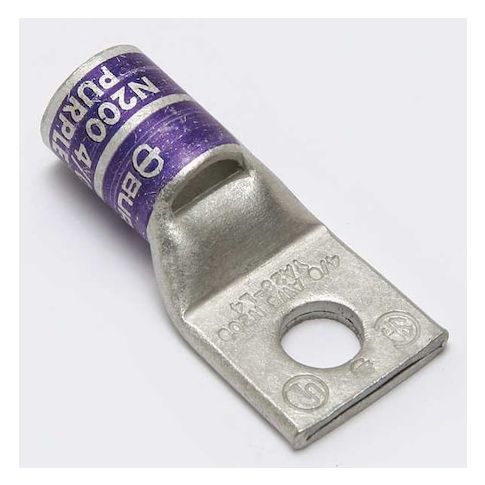

The Burndy One-Hole Compression Lug is a reliable and efficient solution for connecting copper conductors to 3/8 inch studs. Suitable for use with stranded copper wire sizes up to 4/0 AWG, this lug features a standard barrel and straight tongue angle for easy installation. Its copper construction and CSA certification ensure high-quality performance in demanding applications. With a maximum operating temperature of 194°F and a maximum voltage of 35 kV, this lug is ideal for use in electrical systems, including residential and commercial power distribution. Its compact design and ease of use make it a valuable addition to any electrical project.
Top product features:
- It has a standard barrel design.
- It is rated for a maximum operating temperature of 194 degrees F.
- It can accommodate stranded copper wire sizes up to 4/0 AWG.
Top product applications:
- Electrical Panel Installation
- Busbar Connection
- Low-Voltage Power Distribution
Compression Lug, Barrel Size Standard, Color Code Purple, Die Code 15, Tongue Angle Straight, Tongue Width 1.02 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 1.00
- Package Height: 0.60
- Package Weight: 0.10
