Split-Bolt Connector, 10 sol to 6 str MPN:KSA6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4661982
Split-Bolt Connector, 10 sol to 6 str

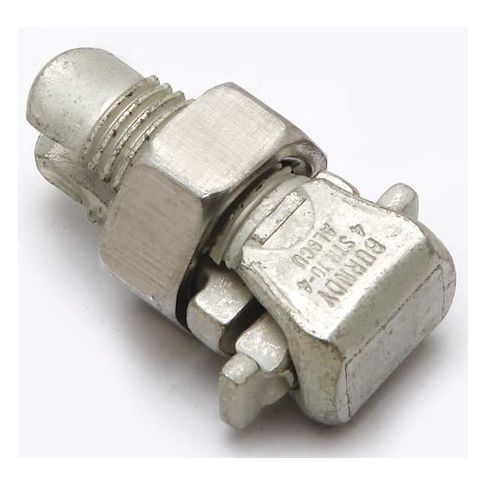

The Burndy Split-Bolt Connector is a reliable and efficient solution for electrical connections. Designed for use with aluminum and copper conductors, this connector features a tin-plated aluminum body and a square head with a hex nut. With a maximum operating temperature of 194°F and a maximum voltage of 35kV, it's suitable for a range of applications, including power distribution and electrical panel connections. The connector's compact size and low torque requirements make it easy to install, while its RoHS compliance ensures environmental sustainability. Ideal for use in commercial and industrial settings, the Split-Bolt Connector provides a secure and reliable connection.
Top product features:
- Tin plated body for corrosion resistance
- Aluminum body for lightweight construction
- Square head design for easy tightening in tight spaces
Top product applications:
- High Voltage Electrical Distribution Systems
- Motor Control Circuits
- High Power Electrical Equipment Connections
Split-Bolt Connector, Body Finish Tin Plated, Body Material Aluminum, For Conductor Material Aluminum, Copper, For Minimum Run Wire Size 10 AWG, For Maximum Run Wire Size 6 AWG, For Minimum Tap Wire Size 10 AWG, For Maximum Tap Wire Size 6 AWG, Head Style Square Head, Hex Nut Size 0.75 in, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Torque 165 in-lb, Compatible Manufacturer Model Number SC2, Overall Length 1.68 in, Overall Width 0.56 in, RoHS Compliant Yes
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 0.80
- Package Height: 0.80
- Package Weight: 0.01
Product info last updated on February 2, 2026 1:56pm UTC
Category: Electrical Connectors
