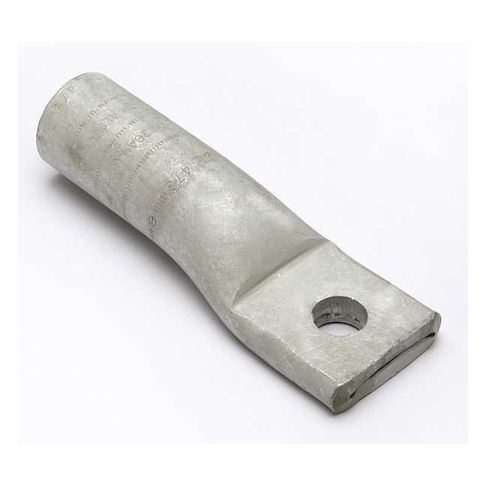

One-Hole Compression Lug, 2/0 AWG Max, 1/2 in Stud, Short Barrel, Aluminum, Olive MPN:YA26A1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4661851
One-Hole Compression Lug, 2/0 AWG Max, 1/2 in Stud, Short Barrel, Aluminum, Olive
For heavy-duty electrical connections, Burndy's One-Hole Compression Lug is the reliable choice. Designed for use with stranded copper wire up to 2/0 AWG and aluminum conductors, this lug features a short barrel and straight tongue angle for secure crimping. With a maximum operating temperature of 194°F and a voltage rating of 35kV, it's suitable for a wide range of applications, including industrial and commercial electrical systems. CSA certified and UL listed, this lug meets the highest standards for safety and performance. Its compact size and lightweight design make it easy to handle and install, reducing labor costs and improving efficiency.
Top product features:
- Termination Style Crimp
- Maximum Operating Temperature 194 Degrees F
- For Conductor Material Aluminum, Copper
Top product applications:
- Bus Bar Connectors
- Panel Mount Connectors
- Electrical Distribution Systems
Compression Lug, Barrel Size Standard, Color Code Olive, Die Code 297, Tongue Angle Straight, Tongue Width 1.03 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 1.10
- Package Height: 0.70
- Package Weight: 0.05
Product info last updated on February 10, 2026 4:28am UTC
Category: Electrical Connectors
