Mechanical Lug, 750 kcmil Max, 4 Conductor, 2 Hole, 3/8 in Stud, Aluminum MPN:K22A39U2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4661483
Mechanical Lug, 750 kcmil Max, 4 Conductor, 2 Hole, 3/8 in Stud, Aluminum

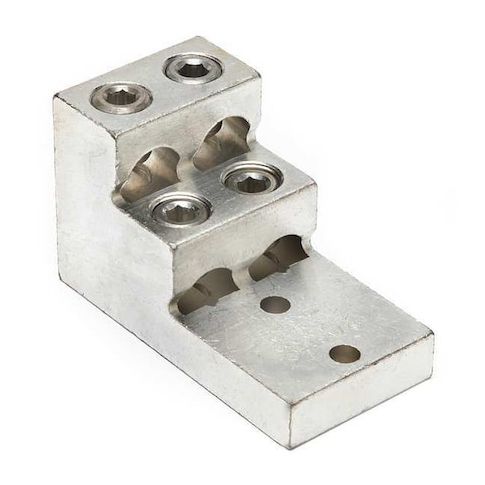

The Burndy Mechanical Lug is a reliable and efficient solution for connecting aluminum or copper conductors in a variety of applications. Designed for stranded copper wire sizes from 1/0 AWG to 750 kcmil, this lug features a 3/8 inch stud and a hex socket head for easy installation. Its aluminum body and mechanical design provide high-temperature performance up to 194°F and withstands up to 600V. Suitable for use in electrical distribution and transmission systems, the Mechanical Lug is ideal for utility companies, contractors, and industrial facilities. Its compact design and robust construction ensure secure connections and long-lasting performance.
Top product features:
- Connects four stranded copper wires with a minimum size of 1/0 AWG and a maximum size of 750 kcmil.
- Accepts conductors made of aluminum and copper.
- Has a maximum operating temperature of 194 degrees F and a maximum voltage of 600 V.
Top product applications:
- Bus Bar Connectors
- Electrical Panel Connectors
- Generator Connectors
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 750 kcmil, For Stud Size 3/8 in, Head Style Hex Socket, Number of Holes 2, Hole Diameter 0.41 in, Hole Spacing 1.38 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 4, Number of Terminations 4, Tongue Length 2.31 in, Tongue Width 3.06 in, Tongue Thickness 0.75 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 3.10
- Package Weight: 1.65
Product info last updated on February 22, 2026 7:00am UTC
Category: Electrical Connectors
