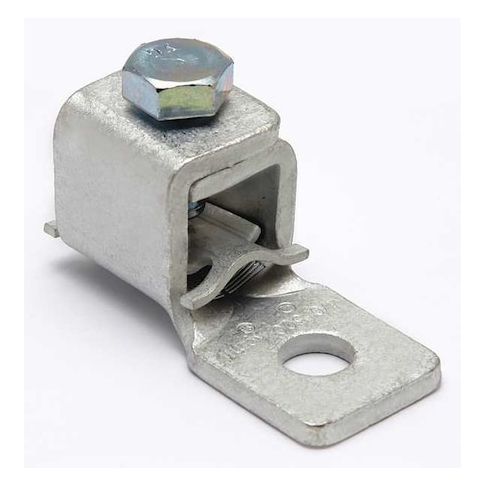

Mechanical Lug, 8 AWG Max, 1 Conductor, 1 Hole, #10 Stud, Copper MPN:KPA8C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4660056
Mechanical Lug, 8 AWG Max, 1 Conductor, 1 Hole, #10 Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector for copper stranded conductors, suitable for a wide range of applications. It features a #10 stud and a maximum operating temperature of 194°F, making it ideal for use in electrical systems where high temperatures are present. The lug is designed for use with conductors ranging from 14 AWG to 8 AWG, and its copper body ensures excellent conductivity. Suitable for use in electrical panels, switchgear, and other applications where a secure and reliable connection is required, the Burndy Mechanical Lug provides a long-lasting and trouble-free connection.
Top product features:
- Connects stranded copper wire with a maximum size of 8 AWG
- Accepts a #10 stud for secure attachment
- Operates at a maximum temperature of 194 Degrees F and a maximum voltage of 600 V
Top product applications:
- Wire harness assembly for automotive applications
- Electrical panel building for industrial equipment
- Low-voltage electrical distribution systems in commercial buildings
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, For Stud Size #10, Head Style Slotted, Number of Holes 1, Hole Diameter 0.21 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.47 in, Tongue Width 0.38 in, Tongue Thickness 0.06 in, Connector Type Terminal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 0.50
- Package Height: 0.70
- Package Weight: 0.05
Product info last updated on April 8, 2026 5:33am UTC
Category: Electrical Connectors
