Two-Hole Compression Lug, 350 kcmil Max, 1/2 in Stud, Standard Barrel, Aluminum, Brown MPN:YA31A3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4659347

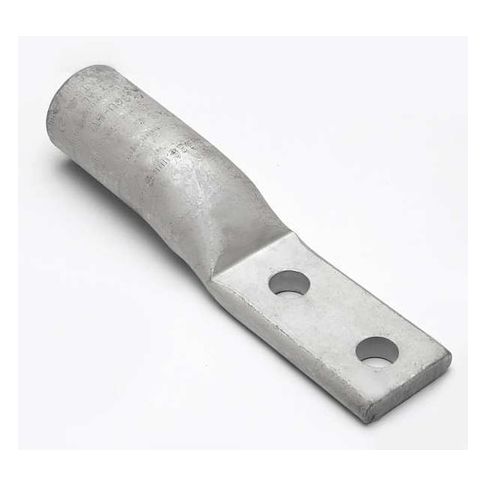

Two-Hole Compression Lug, 350 kcmil Max, 1/2 in Stud, Standard Barrel, Aluminum, Brown
The Burndy Two-Hole Compression Lug is a reliable and efficient termination solution for high-voltage applications. Suitable for use with aluminum and copper conductors, this lug features a standard barrel design and a straight tongue angle for easy installation. With a maximum operating temperature of 194°F and a voltage rating of 35kV, it's perfect for heavy-duty applications in the electrical industry. Certified to CSA and UL 486A-486B standards, this lug ensures safe and reliable connections. Ideal for use in power distribution systems, substations, and electrical infrastructure projects, the Burndy Two-Hole Compression Lug provides a secure and long-lasting connection.
Top product features:
- Two-Hole Compression Lug provides a secure crimp termination for stranded copper wire up to 350 kcmil.
- The Lug has a straight tongue angle for easy installation and a smooth, consistent crimp.
- The Lug is designed for use with aluminum and copper conductors, allowing for flexibility in application.
Top product applications:
- Busbar connections
- Power distribution systems
- High-voltage electrical connections
Compression Lug, Barrel Size Standard, Color Code Brown, Die Code 299, Tongue Angle Straight, Tongue Width 1.52 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 350 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 1.50
- Package Height: 1.30
- Package Weight: 0.35
Product info last updated on March 21, 2026 3:01pm UTC
Category: Electrical Connectors
