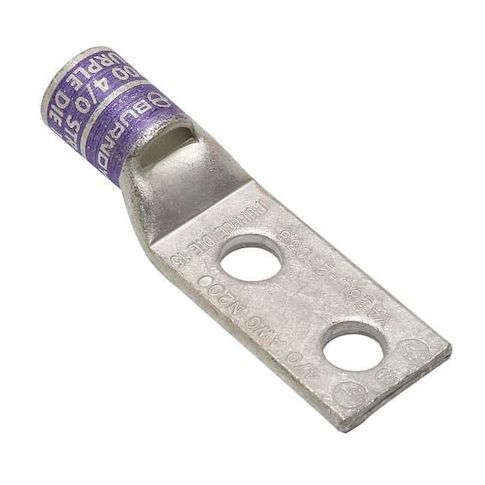

Two-Hole Compression Lug, 4/0 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Purple MPN:YA28L2TC38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4659173
Two-Hole Compression Lug, 4/0 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Purple
The Burndy Two-Hole Compression Lug is a reliable and efficient termination solution for copper conductors. With a maximum operating temperature of 194°F and a voltage rating of 35kV, this lug is suitable for a wide range of applications, including electrical panels, switchgear, and motor control centers. Its standard barrel design and straight tongue angle make it easy to install and inspect. The lug's copper construction ensures optimal conductivity and durability. Ideal for use with stranded copper wire sizes up to 4/0 AWG, this lug is CSA certified and UL listed, making it a trusted choice for electrical professionals.
Top product features:
- Has a straight tongue angle
- Is CSA certified and UL listed for electrical safety
- Crimps stranded copper wire up to 4/0 AWG
Top product applications:
- Bus and Truck Electrical Systems
- Railway Electrical Systems
- Industrial Power Distribution Systems
Compression Lug, Barrel Size Standard, Color Code Purple, Die Code 15, Tongue Angle Straight, Tongue Width 1.02 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 1.00
- Package Height: 0.70
- Package Weight: 0.15
Product info last updated on February 12, 2026 11:34am UTC
Category: Electrical Connectors
