One-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Long Barrel, Copper, Blue MPN:YA6C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4657886

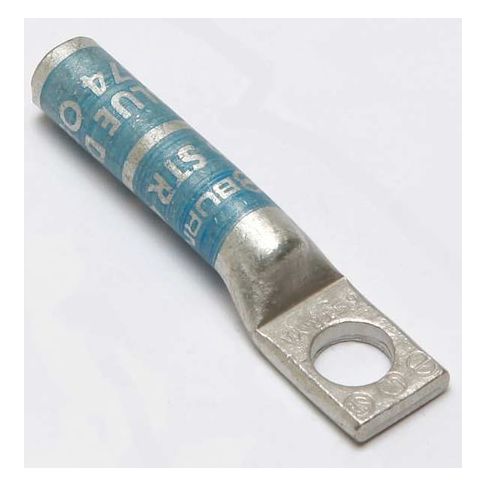

One-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Long Barrel, Copper, Blue
The Burndy One-Hole Compression Lug is a reliable and efficient connector for copper conductors. Ideal for use in high-voltage applications, this lug features a long barrel and straight tongue angle for secure crimping. With a maximum operating temperature of 194°F and a voltage rating of 35kV AC, it's perfect for demanding environments. Suitable for stranded copper wire sizes from 6 AWG, this lug is CSA certified and UL listed, ensuring compliance with industry standards. Common applications include electrical distribution systems, switchgear, and motor control devices, where high-performance and reliability are crucial.
Top product features:
- One-Hole Lug Compression Connector provides a secure crimp termination for stranded copper wire up to 6 AWG.
- The lug has a long barrel design for ease of use and reduced risk of wire damage.
- The connector is rated for operation at temperatures up to 194 Degrees F.
Top product applications:
- Automotive wiring harnesses
- Industrial electrical connections
- Heavy-duty electrical distribution systems
One-Hole Lug Compression Connector, Barrel Size Long, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.41 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 0.40
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on February 9, 2026 11:17pm UTC
Category: Electrical Connectors
