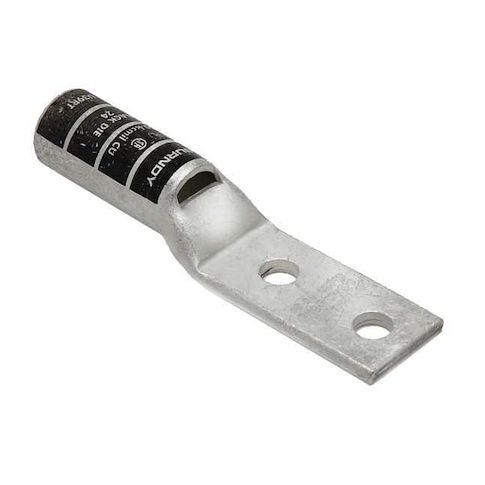

Two-Hole Compression Lug, 750 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Black MPN:YAZ392NNT
Two-Hole Compression Lug, 750 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Black
Compression Lug, Barrel Size Long, Color Code Black, Die Code 24, Tongue Angle Straight, Tongue Width 1.63 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 750 kcmil, For Stranded Copper Wire Size - Maximum 750 kcmil, Inspection Hole Yes, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 1.60
- Package Height: 1.50
- Package Weight: 0.95
Product info last updated on March 3, 2026 5:36am UTC
Category: Electrical Connectors
