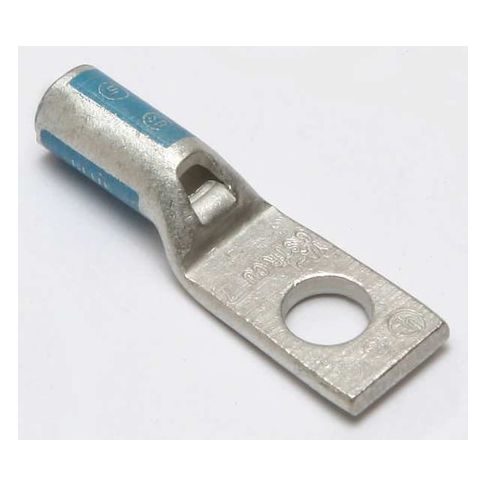

One-Hole Compression Lug, 6 AWG Max, 5/16 in Stud, Standard Barrel, Copper, Blue MPN:YA6CL3BOX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4657633
One-Hole Compression Lug, 6 AWG Max, 5/16 in Stud, Standard Barrel, Copper, Blue
Burndy's One-Hole Compression Lug is a reliable and efficient solution for connecting copper conductors. Designed for use with 5/16 in studs, this lug features a standard barrel and straight tongue angle, making it suitable for a variety of applications. With a maximum operating temperature of 194°F and a maximum voltage of 35 kV, it can handle demanding electrical systems. CSA certified and UL listed, this lug meets industry standards for safety and performance. Ideal for use in electrical panels, switchgear, and other applications where reliable connections are crucial, this lug provides a secure and long-lasting connection for copper conductors up to 6 AWG.
Top product features:
- One-Hole Compression Lug provides a secure crimp termination for stranded copper wire up to 6 AWG.
- The lug has a straight tongue angle, allowing for easy wire insertion and secure crimping.
- The lug is designed for use with a 5/16 inch stud, providing a strong and reliable connection.
Top product applications:
- Automotive electrical system connections
- Electrical panel or circuit breaker connections
- Heavy-duty industrial electrical connections
Compression Lug, Barrel Size Standard, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.52 in, For Conductor Material Copper, For Stud Size 5/16 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 0.50
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on February 7, 2026 11:53pm UTC
Category: Electrical Connectors
