Mechanical Lug, 500 kcmil Max, 1 Conductor, 2 Hole, 1/2 in Stud, Copper MPN:QA342N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4656556
Mechanical Lug, 500 kcmil Max, 1 Conductor, 2 Hole, 1/2 in Stud, Copper

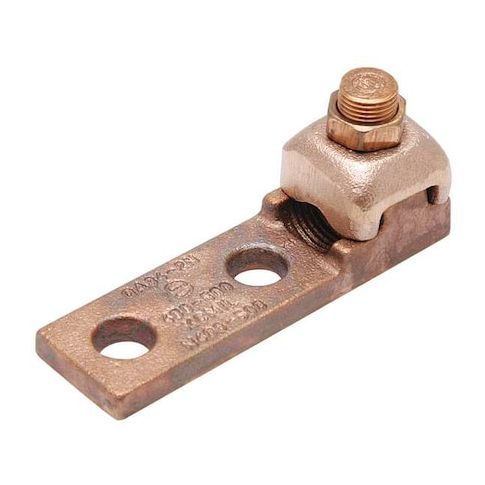

The Burndy Mechanical Lug is a reliable and efficient connector for stranded copper wire, suitable for applications up to 600V and 194°F. Its robust design accommodates wire sizes from 400 to 500 kcmil, and its copper body ensures optimal conductivity. The lug features a hex head and two holes for secure attachment to a 1/2 inch stud. Its compact size and ease of installation make it ideal for use in electrical distribution systems, power generation, and industrial automation. With its high-quality construction and reliable performance, the Burndy Mechanical Lug is a trusted choice for professionals and engineers.
Top product features:
- For Conductor Material Copper, For Stranded Copper Wire Size Minimum 400 kcmil, For Stranded Copper Wire Size Maximum 500 kcmil
- Has a 1/2 in Stud for secure attachment
- Has a Hex Head Style for easy handling and installation
Top product applications:
- Industrial electrical wiring for high-voltage applications up to 600V
- Commercial electrical wiring for residential and commercial buildings
- Heavy industrial electrical wiring for power distribution and transmission
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 400 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, For Stud Size 1/2 in, Head Style Hex, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 3.09 in, Tongue Width 1.38 in, Tongue Thickness 0.31 in, Connector Type Terminal
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 1.50
- Package Height: 2.00
- Package Weight: 0.95
Product info last updated on February 3, 2026 12:41am UTC
Category: Electrical Connectors
