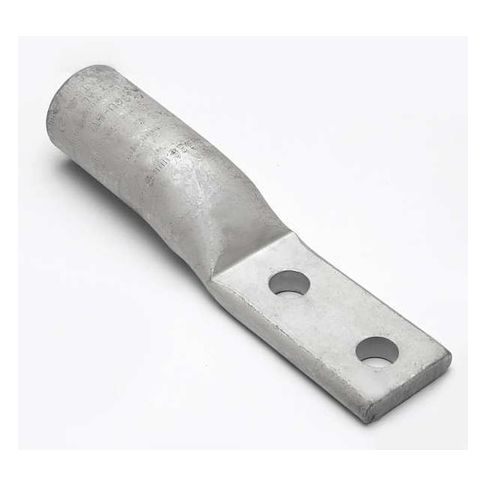

Two-Hole Compression Lug, 700 kcmil Max, 1/2 in Stud, Standard Barrel, Aluminum, Yellow MPN:YA39A5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4655734
Two-Hole Compression Lug, 700 kcmil Max, 1/2 in Stud, Standard Barrel, Aluminum, Yellow
The Burndy Two-Hole Compression Lug is a reliable and efficient solution for connecting aluminum or copper conductors up to 700 kcmil. Its standard barrel design and yellow color coding ensure easy identification and installation. The lug's crimp termination style provides a secure and long-lasting connection. Suitable for use in a variety of applications, including electrical distribution and transmission systems, the Two-Hole Compression Lug meets CSA and UL 486A-486B standards. Its compact design and easy installation make it an ideal choice for utility companies, contractors, and electrical engineers looking for a high-quality, reliable connection solution.
Top product features:
- Compression Lug suitable for aluminum conductor material
- Suitable for stranded copper wire size up to 750 kcmil
- Termination style is crimp, suitable for high voltage applications up to 35 kV
Top product applications:
- Busbar connections
- Cable termination for power distribution systems
- Low-voltage electrical connections in industrial settings
Compression Lug, Barrel Size Standard, Color Code Yellow, Die Code 936, Tongue Angle Straight, Tongue Width 1.62 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 750 kcmil, For Stranded Copper Wire Size - Maximum 750 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 1.60
- Package Height: 1.50
- Package Weight: 0.55
Product info last updated on February 21, 2026 9:30pm UTC
Category: Electrical Connectors
