One-Hole Compression Lug, 250 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Yellow MPN:YA29LBOX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4655271

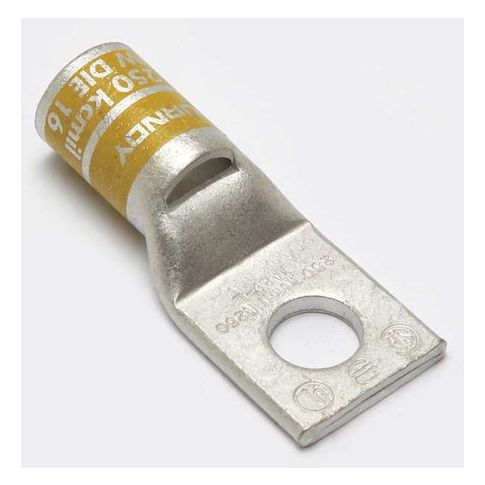

One-Hole Compression Lug, 250 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Yellow
This Burndy One-Hole Compression Lug is designed for use with 250 kcmil stranded copper wire, ideal for applications requiring high voltage and temperature ratings. The lug features a standard barrel and straight tongue angle, ensuring a secure crimp connection. With a maximum operating temperature of 194°F and a voltage rating of 35 kV, this lug is suitable for a variety of electrical applications. CSA certified and UL listed, it meets industry standards for safety and reliability. Perfect for use in electrical panels, switchgear, and other high-voltage equipment, this lug provides a reliable and long-lasting connection.
Top product features:
- Copper construction provides high electrical conductivity
- Standard barrel design allows for secure crimp termination
- Compression lug provides a secure connection for stranded copper wire sizes up to 250 kcmil
Top product applications:
- Grounding and bonding applications in industrial settings
- Heavy-duty electrical connections in commercial construction
- High-voltage electrical connections in utility and transmission infrastructure
Compression Lug, Barrel Size Standard, Color Code Yellow, Die Code 16, Tongue Angle Straight, Tongue Width 1.11 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 250 kcmil, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.20
- Package Height: 0.60
- Package Weight: 0.10
Product info last updated on February 24, 2026 5:27am UTC
Category: Electrical Connectors
