Two-Hole Compression Lug, 350 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Red MPN:YA312N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4654806

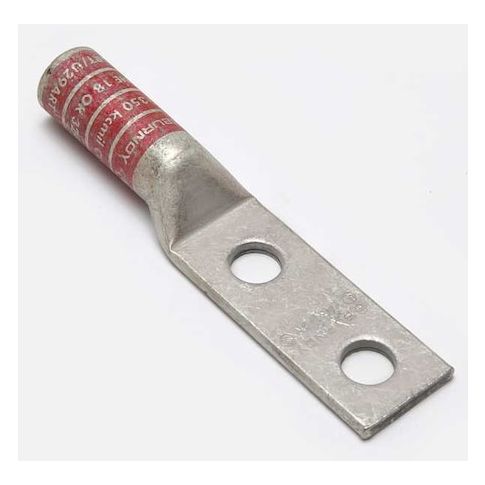

Two-Hole Compression Lug, 350 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Red
The Burndy Two-Hole Compression Lug is a high-performance electrical connector designed for use in demanding applications. With a maximum operating temperature of 194°F and a maximum voltage of 35kV, this lug is suitable for a wide range of industries, including electrical power distribution and transmission. Its long barrel design and straight tongue angle provide secure crimping and maximum conductivity, while its red color coding ensures easy identification. Suitable for stranded copper wire sizes from 350 kcmil, this lug is a reliable choice for applications where high voltage and current are present, such as in electrical substations and power plants.
Top product features:
- Two-Hole Compression Lug has a long barrel design for maximum conductor acceptance.
- Compression Lug is rated for stranded copper wire sizes up to 350 kcmil.
- Compression Lug features a straight tongue angle for secure and reliable connections.
Top product applications:
- High-voltage electrical distribution systems
- Industrial power transmission lines
- Commercial electrical power distribution systems
Compression Lug, Barrel Size Long, Color Code Red, Die Code 18, 324, Tongue Angle Straight, Tongue Width 1.29 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 350 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 1.50
- Package Height: 1.00
- Package Weight: 0.40
Product info last updated on February 4, 2026 12:08pm UTC
Category: Electrical Connectors
